TTE1XX VAG 1.0TSI Upgrade Turbo

TTE1XX VAG 1.0TSI UPGRADE TURBOCHARGER

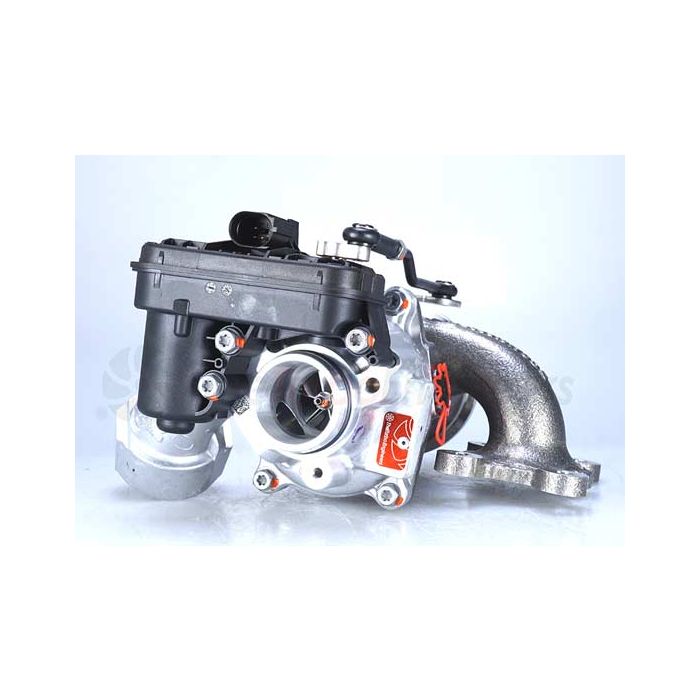

TTE1XX is our very latest hybrid performance upgrade turbocharger based on the Original BorgWarner turbocharger for the VAG 1.0TSI 115PS found in the UP GTI and others in the VAG range. The TTE1XX offers good spool, response, and power. We feel this is the best performing upgrade turbocharger on offer today.

Engineered & Enhanced

To construct a TTE1XX we change the original compressor and employ a far larger and more efficient 6+6 billet wheel with extended tip technology and mill the compressor cover to the optimum gap to match the new compressor profile. We replace the original turbine and CNC mill the turbine housing to install a larger 10 blade turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house.

The 10 Blade TTE turbine is a special turbine. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

Product Highlights:

• Original Genuine BorgWarner turbocharger as the base part
• Original Genuine actuator
• Original Genuine diverter valve
• TTE Billet Milled 6+ 6 compressor
• TTE High-Flow 10 Blade Turbine
• TTE Reinforced bearing pack
• Plug & Play installation
• 200PS capable on 102ron
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

Please note if sending a used turbocharger for the upgrade process. TTE does not recondition the Electronic actuator or Diverter you send. Your sent items will be re-installed. Turbos must be sent complete(actuator, silencer) Do not send your diverter valve. IT IS RECOMMENDED A NEW DIVERTER VALVE IS FITTED
